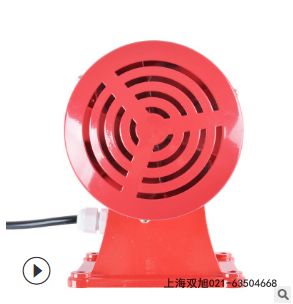

DBSG-06A聲光報警器
產品概述
DBSG-06A聲光報警器是一款專為工業環境設計的警示設備，采用LED燈光與高音量音頻報警相結合的方式，適用于港口碼頭、重型機械、采礦、鐵道口等場所。該產品通過聲光雙重警示機制，幫助現場人員及時察覺潛在風險，提升作業安全性。其一體化設計簡化了安裝流程，支持多種電壓輸入（如DC24V/AC220V），適應不同電力環境需求。外殼采用耐用材質，具備防水防塵特性，可在復雜工況下穩定運行。919
功能特點
該報警器支持多種音調模式選擇，包括警笛音、工程音、消防音等，用戶可根據實際場景需求進行切換。LED警示燈提供高亮度閃爍效果，可視距離遠，配合≥120dB的音頻輸出（音量可調），確保在嘈雜環境中仍能有效傳遞警示信號。產品采用模塊化結構設計，維護便捷，并支持USB接口自定義語音內容，便于個性化設置。觸發式報警機制響應迅速，可與其他安全系統聯動使用。5614
應用場景
DBSG-06A廣泛應用于冶金、化工、礦山等行業的大型起重設備（如門吊、橋吊）及工程車輛，作為運行時的安全預警裝置。同時適用于輸送帶、皮帶機等連續作業設備的異常狀態提醒，或作為周界安防系統的聲光警示終端。其防水特性使其在船舶、碼頭等潮濕環境中也能可靠工作。248
技術參數
工作電壓兼容直流12V至交流380V寬幅輸入；防護等級達到IP56，可抵御粉塵和水霧侵入；尺寸約為160mm（寬）×170mm（高）×390mm（厚），重量適中便于安裝。光源采用多色LED警示燈（可選紅/黃/藍），閃爍頻率可調。聲音頻率范圍為800-1000Hz，支持通過電位器調節音量大小。工作溫度覆蓋-30℃至+70℃，適應極端氣候條件。61014
Product Overview
The DBSG-06A audio-visual alarm is an industrial-grade warning device integrating high-intensity LED strobe lights with loud audible alerts. Designed for harsh environments like ports, mining sites, and heavy machinery zones, it provides dual sensory warnings to enhance situational awareness. The unit features a compact, rugged housing with dustproof and water-resistant construction, ensuring reliable operation under challenging conditions. Multiple voltage options (DC12V to AC380V) allow flexible power supply integration.919
Key Features
With selectable alarm tones including siren, industrial alert, and fire emergency patterns, the device adapts to diverse operational requirements. The ultra-bright LED beacon offers 360° visibility, while the 120dB+ piezoelectric speaker delivers penetrating audio even in high-noise areas. Modular design simplifies maintenance, and the USB interface enables custom voice recording for specialized applications. Instant activation upon trigger input supports seamless integration with safety control systems.514
Typical Applications
Ideal for installation on gantry cranes, bridge cranes, and construction vehicles in metallurgical/chemical plants, it provides movement warnings and fault alerts. The alarm also serves as effective perimeter security notification for conveyor belts, loading docks, and restricted zones. Marine-grade construction makes it suitable for vessel-mounted use in humid or corrosive atmospheres.24
Specifications
Operating voltage ranges from 12VDC to 380VAC with universal compatibility. The IP56-rated enclosure resists environmental ingress, with dimensions of 160(W)×170(H)×390(D)mm for versatile mounting. Multi-color LED options (red/yellow/blue) feature adjustable flash patterns, while the 800-1000Hz sound output includes volume control. Performance remains stable across -30°C to +70°C temperature extremes.610
DBSG-06A聲光報警器聲光報警器DBSG-06A
產品簡介：
大型起重機械等行走設備在冶金企業中是非常重要的設備，它露天作業使用頻繁、啟動聲音小、速度較快，容易因不被現場人員注意而發生**事故。我廠生產的TBJ-150一體化聲光報警器，是針對大型起重機械的工作特點和結構特性而開發的專用報警器，具有許多專業化的特點。
產品特點：
·5W、25W報警音響——聲音宏亮
·帶不銹鋼防護罩旋轉警燈——高亮度、耐沖擊
·防風雨電路工藝設計——防水、防塵、質量可靠
·警燈、警號一體化——安裝簡便
·交流220V觸發即報警——操作簡單
·可選擇高亮度LED頻閃燈——高質量、壽命長、高亮度
技術參數：
DBSG-06A
|
工作電壓
AC220V、50Hz
|
警號功率
5W、25W
|
警燈直徑
D=150mm
|
|
防護罩
不銹鋼
|
觸發信號
AC220V
|
殼體材料
鋼板、噴涂
|
|
外形尺寸（高x長x寬）：435x180x155（mm）
|
DBSG-06A
|
工作電壓
AC220V、50Hz
|
警號功率
5W、25W
|
警燈直徑
D=150mm
|
|
防護罩
不銹鋼
|
觸發信號
AC220V
|
殼體材料
鋼板、噴涂
|
|
外形尺寸（高x長x寬）：435x180x155（mm）
|
